Model:USB Panel-Mount Type A Cable
Specification:USB Panel-Mount Type A Cable
Performance:USB Panel-Mount Type A Cable

Share This:
Product Details

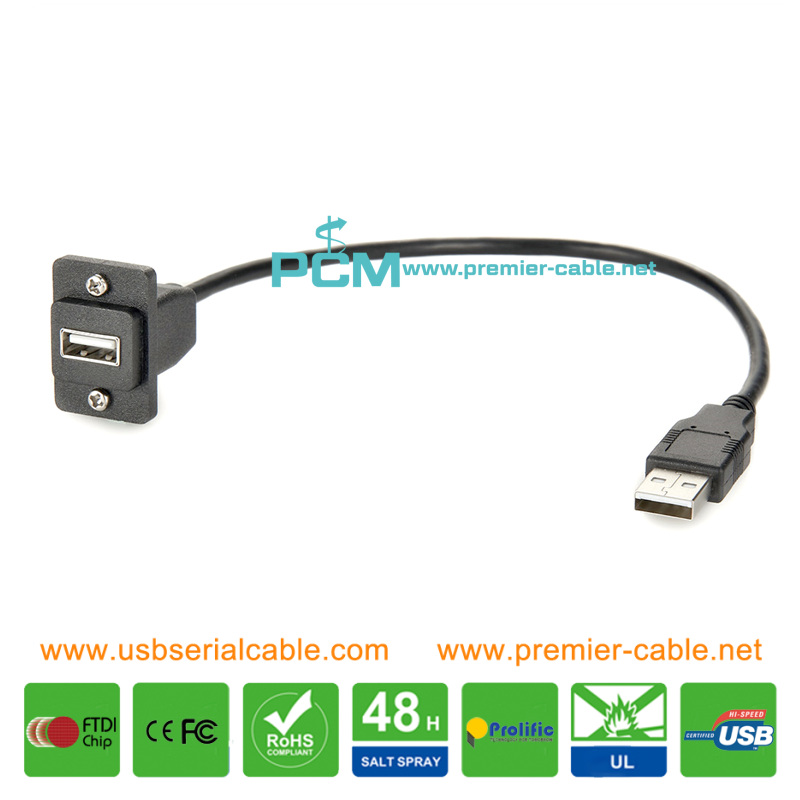

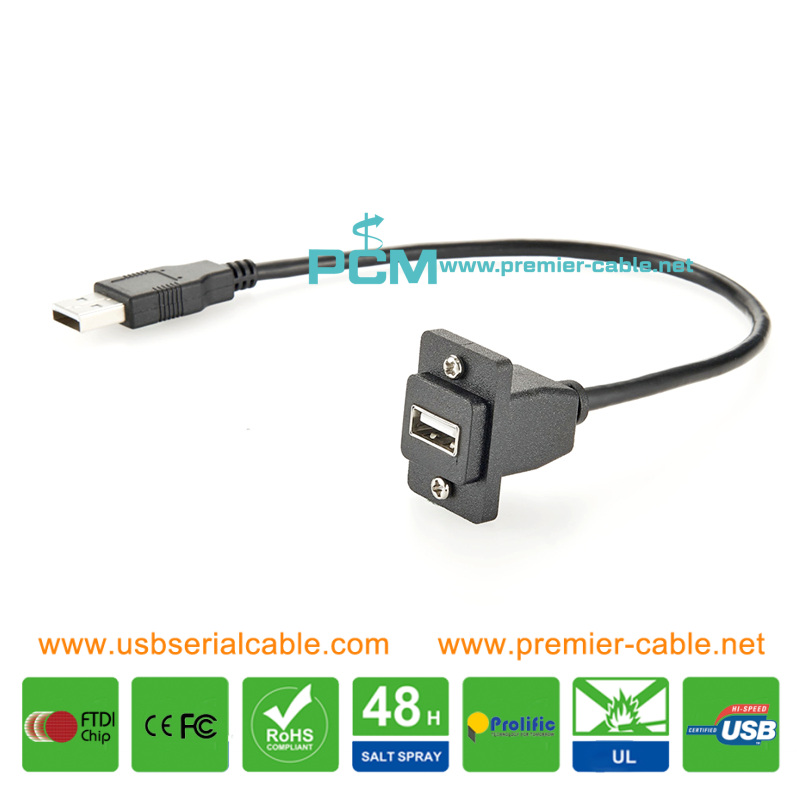

Panel Mount USB Cable - A Male to A Female
USB Panel-Mount Type A Cable



Flanged Panel Mounted USB 2.0 Coupler cable

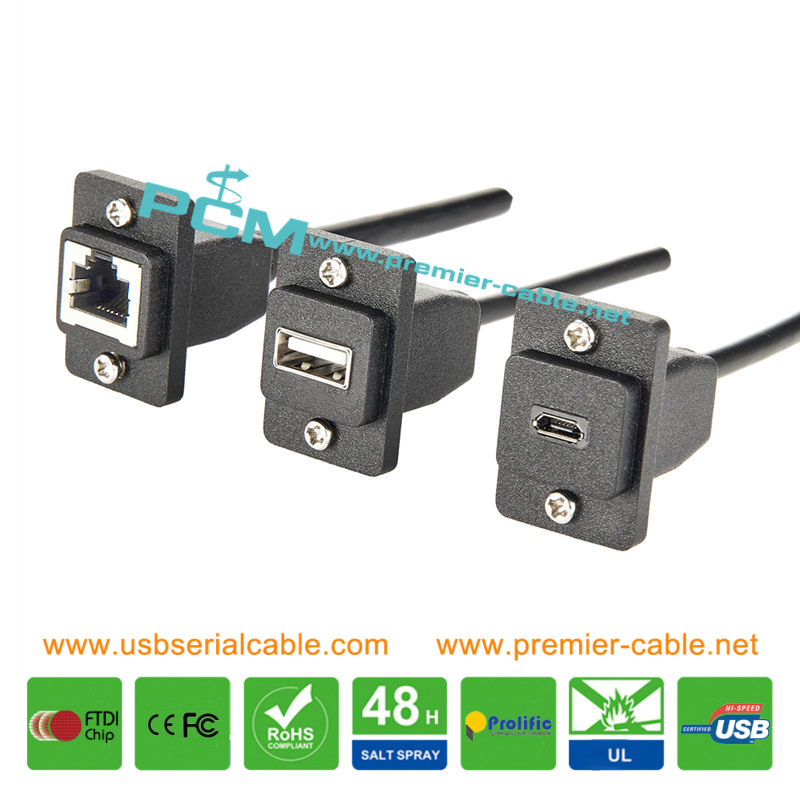

ECF-style USB Panel-mount Cables
USB 2.0 Cable Assembly Type A Male - Type A Female
USB 2.0 Type A Coupler, Female to Male, 30cm


This handy USB extension cable will make it easy for you to enclose a device that has a A type (USB host) port. We think this would be most handy when putting a Beagle Bone, Raspberry Pi or Mintyboost into a box.

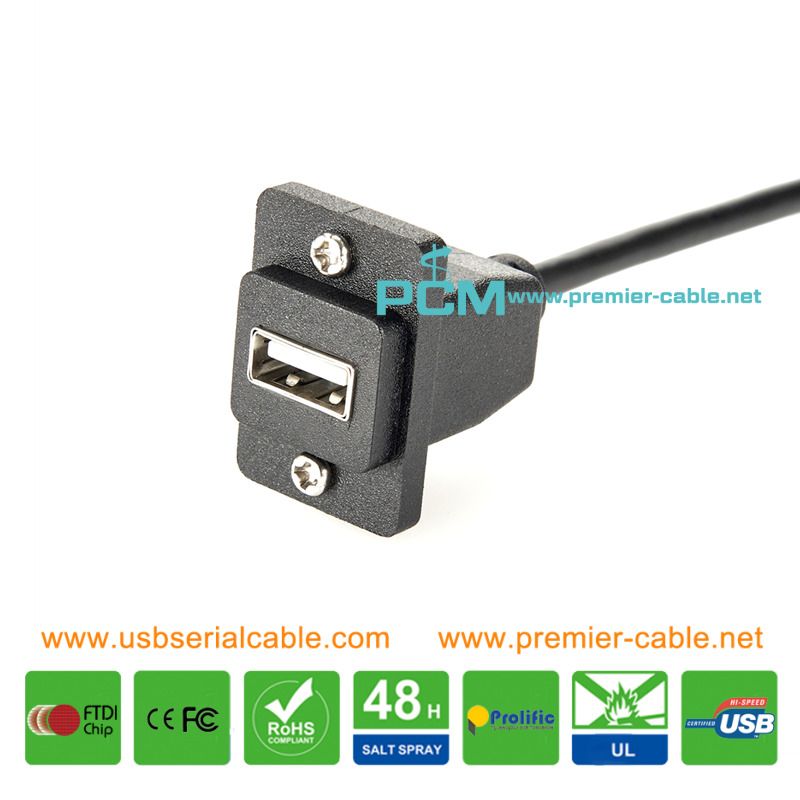

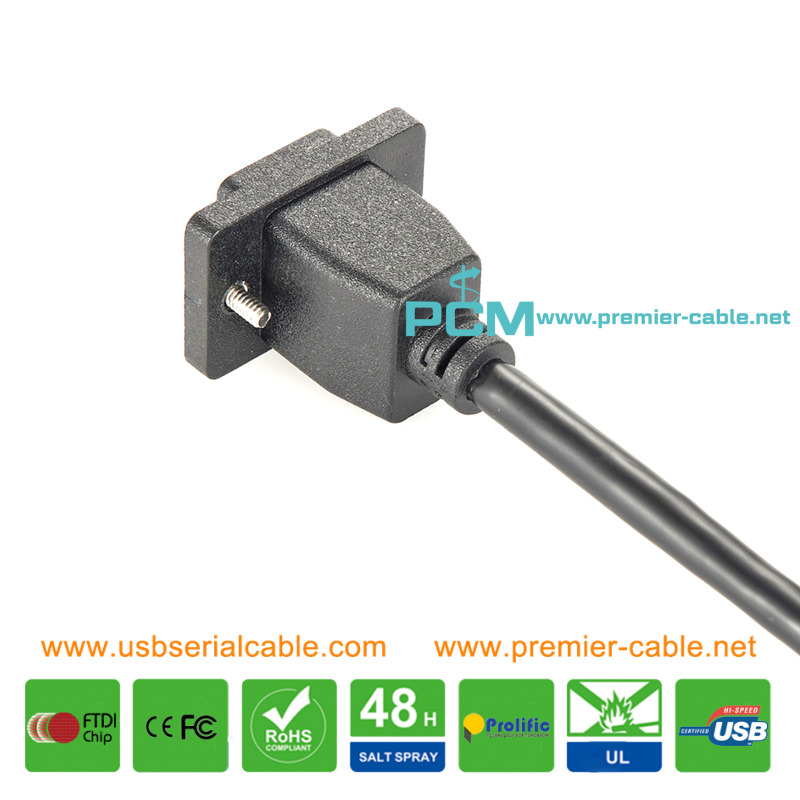

The jack half has two mounting 'ears' with 4-40 screws installed, 30mm apart. The ears are flexible so the holes don't have to drilled very precisely. Can be used with box walls up to 0.25" wide. The screws can be put on from the back for 'reverse' mounting if the box thickness is a problem. Entire unit is 13.4" long from tip to tip (with 10.2" cabling between USB connectors).

Technical Details

Panel mount USB type A socket with USB type A plug at cable end
28 AWG data, 24 AWG power wires
Shielded with wire braid
As of May 9th, 2014 the dimensions are:

13.4" / 340mm long from tip to tip
10.2" / 259 mm cable length between USB connectors
Two 10mm 4-40 mounting screws, 30mm apart
Weight: 27g
